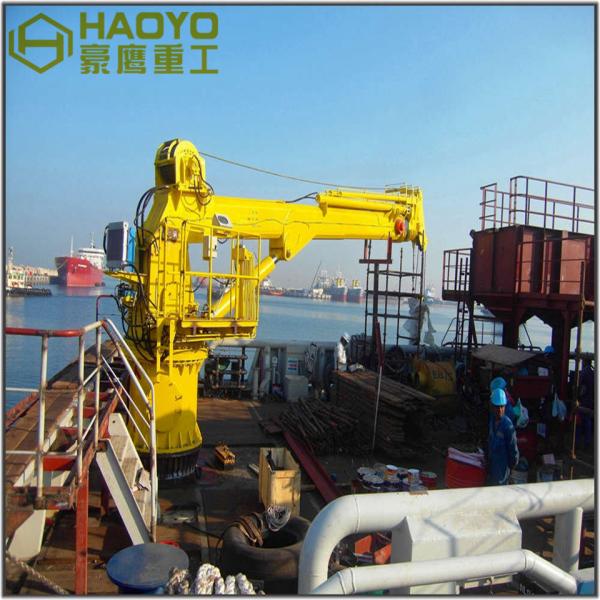

Hydraulic Telescopic Floating Dock Pedestal Crane for Sale Marine Ship Deck Crane
1.Telescopic Marine Crane is composed of base, arm frame, tower, hydraulic winch,
telescopic oil cylinder, Amplitude oil cylinder, hydraulic rotary mechanism, operating
platform, hydraulic transmission parts, electric controlling part and etc.
2.The base is cylinder structure, can be welded on the deck, also can connect with
deck by high strength bolts. Connection mode must to be marked.
3.Arm frame and tower are box structure. Hydraulic winch controls the goods rising
and drop. Telescopic oil cylinder controls level the telescopic crane boom. Amplitude
oil cylinder controls goods correct hook-on point and landing point.
4. Swing mechanism for controlling crane turning right or left turn. Operation platform
is used for operation and maintenance debugging. Hydraulic transmission parts for the
system to provide pressure oil; The electrical control system mainly control motor stops,
operation.
Drawing(Hydraulic Telescopic Floating Dock Pedestal Crane for Sale)
Technical Parameters(Hydraulic Telescopic Floating Dock Pedestal Crane for Sale)
| MODEL | Safety Load
(KN) | Max Outreach
(m) | Lifting Speed (m/min) | Slewing Speed
(r/min) | Luffing Time
(s) | Hoisting Height
(m) | Slewing Angle(°) | Permissible Heeling(transverse /longitudinal)(°) | Power (kW) |
| 10 | 10 | 6~20 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 7.5 |
| 15 | 15 | 8~22 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 11 |
| 20 | 20 | 5~24 | 15 | 1 | 60 | 30 | 360° | 2° /5° | 15 |
| 30 | 30 | 8~25 | 15 | 0.9 | 70 | 30 | 360° | 2° /5° | 22 |
| 50 | 50 | 12~25 | 15 | 0.75 | 80 | 30 | 360° | 2° /5° | 37 |
| 80 | 80 | 12~25 | 15 | 0.75 | 100 | 40 | 360° | 2° /5° | 55 |
| 100 | 100 | 12~25 | 15 | 0.75 | 110 | 40 | 360° | 2° /5° | 75 |
| 150 | 150 | 12~28 | 15 | 0.6 | 110 | 30 | 360° | 2° /5° | 90 |
| 200 | 200 | 16~30 | 15 | 0.6 | 120 | 35 | 270° | 2° /5° | 75*2 |
| 250 | 250 | 20~35 | 15 | 0.5 | 130 | 40 | 270° | 2° /5° | 90*2 |
| 300 | 300 | 35 | 15 | 0.4 | 140 | 40 | 270° | 2° /5° | 90*2 |
| 350 | 350 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 110*2 |
| 400 | 400 | 20~40 | 15 | 0.5 | 150 | 45 | 360° | 2° /5° | 140*2 |
| 450 | 450 | 25~40 | 15 | 0.45 | 160 | 50 | 360° | 2° /5° | 140*2 |
| 500 | 500 | 20~40 | 15 | 0.45 | 170 | 50 | 360° | 2° /5° | 165*2 |
Production Flow(Hydraulic Telescopic Floating Dock Pedestal Crane for Sale)
Certifications(Hydraulic Telescopic Floating Dock Pedestal Crane for Sale)
Packaging & Delivery
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.
