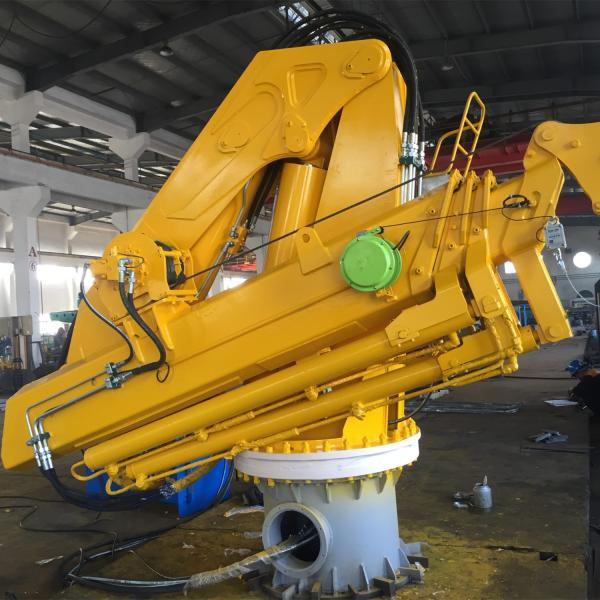

Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane
Telescopic knuckle folding boom marine ship deck crane are suitable when the deck
space is limited.Telescoping Boom hydraulic marine is designed for general cargo
handling and service onboard ships and offshore units.The crane is most suitable
when the amount of space on deck is ample. These cranes offer a cost-effective
alternative to fixed booms. The crane is fixed where the lift is mostly done by the
winch. Cannot be hydraulically extended and retracted and have no knuckle function.
With various standard components and extra options, the crane is used as a multi
-functional tool. Crane Applications: service cranes, cargo handling cranes, fishing
and fishing cranes
Product Drawing of Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane
MODEL of Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane
| MODEL | Outreach
(m) | Safety Load(kN) | Lifting Moment(kNm) | Total Moment (r/min) | Pedestal Diameter (mm) | Dead Weight (t) |
| ECK 150 | 8.0-12.0 | 2.1-1.1 | 132-168 | 241 | 885 | 2.8-3.2 |
| ECK 250 | 10.0-14.0 | 2.9-1.8 | 242-290 | 381 | 885 | 3.7-4.3 |
| ECK 350 | 12.0-16.0 | 3.6-2.3 | 370-430 | 603 | 1095 | 5.3-6.3 |
| ECK 550 | 14.0-18.0 | 4.7-3.2 | 573-660 | 980 | 1325 | 7.8-9.2 |
| ECK 750 | 14.0-18.0 | 6.1-4.2 | 749-855 | 1375 | 1490 | 11.5-12.8 |
| ECK1150 | 16.0-20.0 | 7.3-5.2 | 1040-1160 | 1765 | 1490 | 12.7-14.0 |
| ECK1450 | 16.0-20.0 | 9.0-6.4 | 1268-1440 | 2555 | 1770 | 19.2-23.0 |
| ECK 220 | 27.5 | 30,0 | 2200 | 4000 | 1800 | 25.0 |
| ECK 300 | 30.0 | 30.0 | 3000 | 5000 | 2065 | 27.5 |
| ECK 400 | 32.0 | 30.0 | 4000 | 6300 | 2050 | 30.0 |
| ECK 500 | 35.0 | 35.0 | 5000 | 8000 | 2240 | 35.0 |
| ECK 800 | 37.0 | 50.0 | 8000 | 11500 | 2271 | 55.0 |
| ECK1000 | 40.0 | 60.0 | 10000 | 14400 | 2536 | 70.0 |
| ECK1200 | 43.0 | 80.0 | 12000 | 18000 | 2550 | 100.0 |
| ECK1600 | 45.0 | 100.0 | 16000 | 34000 | 3166 | 150.0 |
| ECK2000 | 50.0 | 125.0 | 20000 | 44000 | 3987 | 200.0 |
| ECK2500 | 50.0 | 150.0 | 25000 | 50000 | 4000 | 220.0 |
| ECK3000 | 50.0 | 200.0 | 30000 | 60000 | 4500 | 275.0 |
Certificates
HOT PRODUCT of Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane
Packing & Delivery(Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane)
Shipping details
♦ check all the items and packaged well before loading.
♦ You can check loading or send picture to you.
♦ After shipping make documents for you,like B/L,packing list,voice according
to your requirements.
About us(Hydraulic Telescopic Knuckle Boom Offshore Crane Marine Ship Deck Crane)
Our Service
♦ HAOYO after Sales Service provides timely and efficient support, both to our
clients and partners.
♦ Our Spare-Parts office, instead, deals with requests from customers around the
world,arranging component shipment in the shortest possible time.
♦ Our HAOYO Spare-Parts staff also support retailers and customers in choosing
pieces best suited to their needs.
